Traefik — 8. CrowdSec + Prometheus + Grafana

traefik, crowdsec, prometheus, grafana, monitoring

8 января 2026

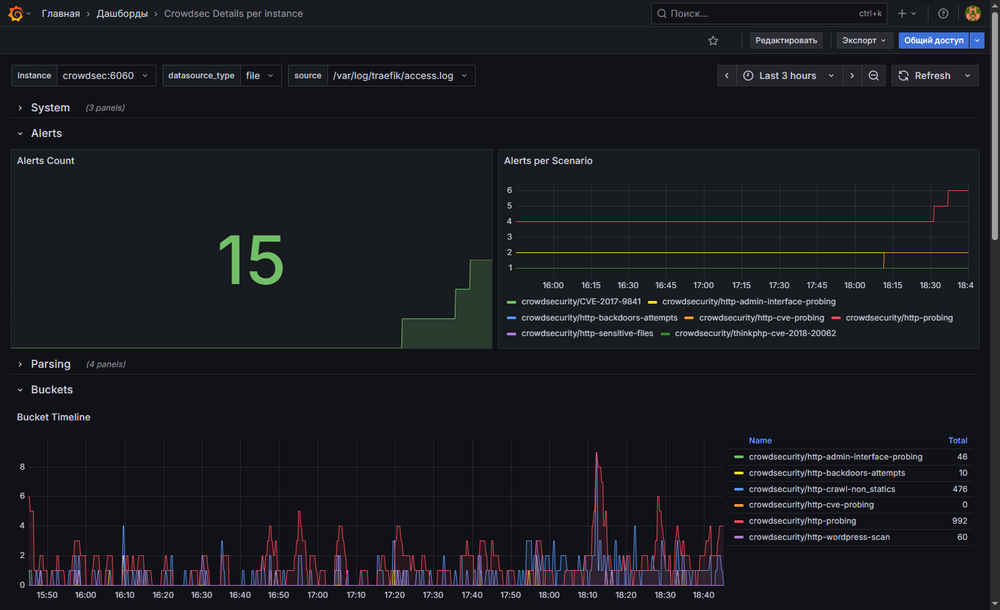

CrowdSec мы установили, Prometheus тоже. Теперь выведем метрики в Grafana. Сделать это очень легко.

В конфиг prometheus.yml добавляем ещё одно задание:

  - job_name: 'crowdsec'
    scrape_interval: 30s
    scheme: http
    metrics_path: '/metrics'
    static_configs:
      - targets: ['crowdsec:6060']

Вместе с метриками Traefik получилось так:

prometheus.yml

global:
  scrape_interval:     15s # By default, scrape targets every 15 seconds.

  # Attach these labels to any time series or alerts when communicating with
  # external systems (federation, remote storage, Alertmanager).
  external_labels:
    monitor: 'codelab-monitor'

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: 'prometheus'

    # Override the global default and scrape targets from this job every 5 seconds.
    scrape_interval: 15s

    static_configs:
      - targets: ['localhost:9090']

  - job_name: 'traefik'
    scrape_interval: 30s
    scheme: http
    metrics_path: '/metrics'
    static_configs:
      - targets: ['traefik:9100']
  - job_name: 'crowdsec'
    scrape_interval: 30s
    scheme: http
    metrics_path: '/metrics'
    static_configs:
      - targets: ['crowdsec:6060']
